Precast Wall Panel Systems

Efficient, scalable machinery for manufacturing high-quality, lightweight precast wall panels.

Machine specification

Electric Feeding Dumper

Automates the transport and feeding of concrete directly into the extruder.

Capacity 0.5 CBM
Speed 15 km/h
Power Battery, 48V — 4 batteries
Working Time 10–12 hrs / full charge
Machine specification

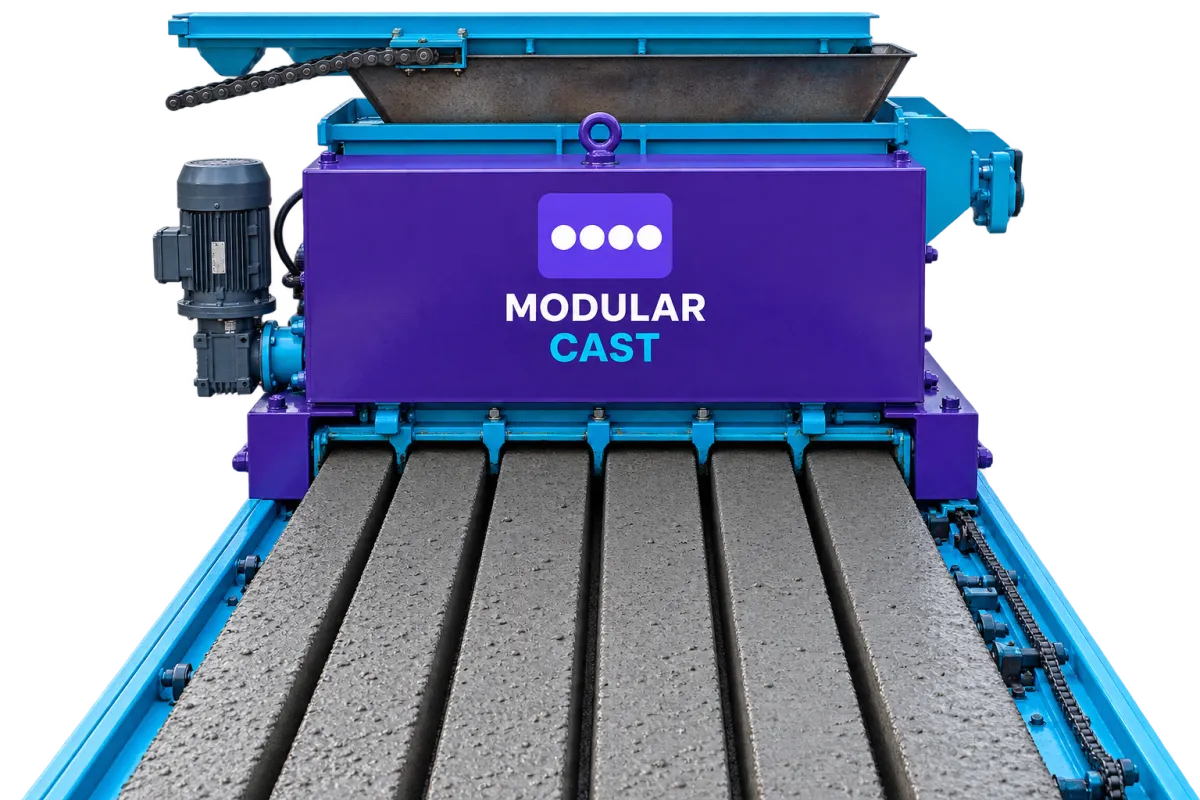

Precast Wall Panel Extruder

Continuously extrudes high-density wall panels with minimal vibration noise.

Extrusion Speed 1.7–3.0 m/min
Main Motor 5 KW
Dimensions 600 mm (W) × 100/150 mm (T)
Reinforcement Up to 8 cold-drawn steel wires (3 mm)
Concrete Grade C20 MPa
Machine specification

Hydraulic Installation Machine

Mechanised lifting and precise placement of finished wall panels on-site.

Max Load 300 Kg
Battery DC 48V, 73A
Max Panel Length 6 metres
Clamp Lifting Height 4.2 metres
Max Clamping Thickness 200 mm
Capability 360-degree rotation
Operation 12 hours on a 6–8 hour charge
Concrete Lintel Machine — Card
Lintel Machine

Concrete Lintel Machine

High-speed casting of reinforced concrete lintels for structural support.

Dimensions200 mm × 100 mm
Forming Speed1.3–1.5 m/min
OutputForms 4 lines simultaneously
Power5.5 KW Motor / 2.2 KW Vibrator
ConcreteC30 MPa
Steel6 cold-drawn wires (5 mm) per lintel
Steel Wire Tension Machine DL-1 — Card
Model DL-1

Steel Wire Tension Machine & Clamps

Hydraulically pre-stresses steel strands to give columns and lintels immense load-bearing strength.

ModelDL-1
Rated Tension12 KN
Motor1.1 KW
AnchoringHigh-strength steel wire anchors
Model HC600

Concrete Cutting Machine

Precision cutting of cured concrete elements to customised lengths.

Model HC600
Cutting Depth 220 mm
Machine Width 1200 mm
Motor Power 5.5 KW
Rotation Speed 2000 r/min
Blade Ø600 mm Segmented Dry Diamond Blade
Model MZY-3

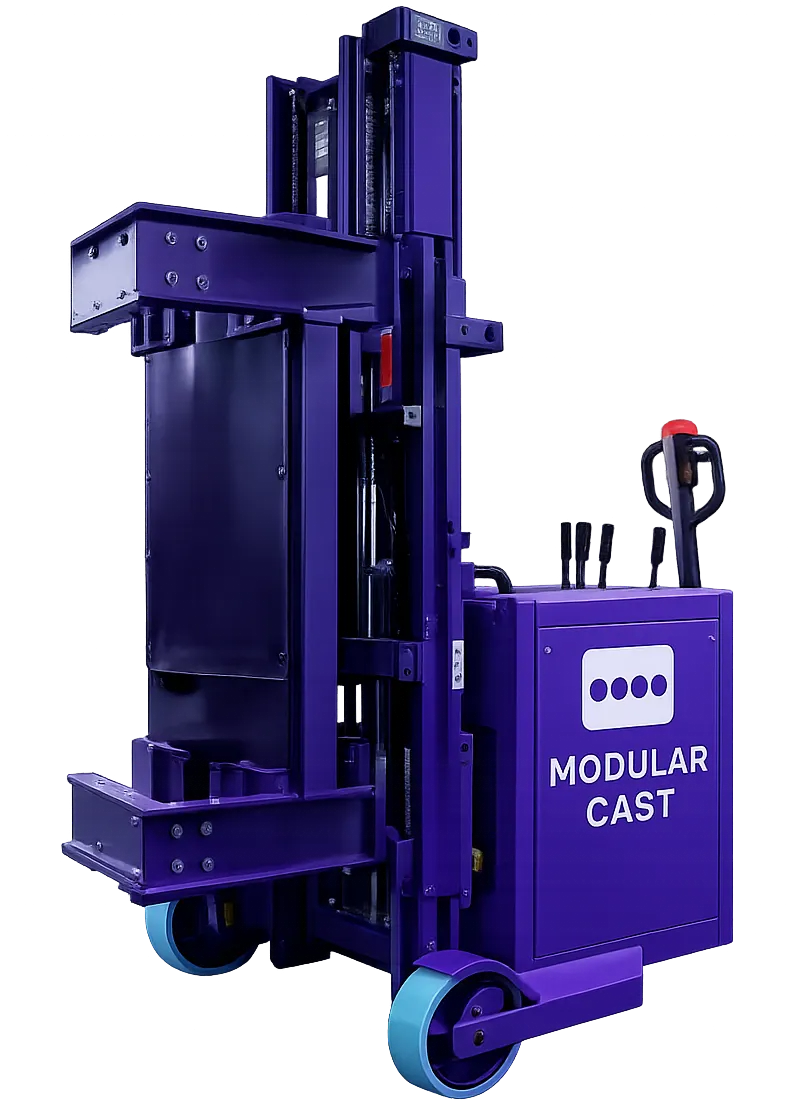

Wall Panel Lifting Trolley

Agile, manually guided mechanised lifting for transporting heavy panels across the factory floor.

Model MZY-3
Battery DC 24V, 45A
Max Load 250 Kg
Max Panel Length 3 metres
Working Time 3–5 hours per 2-hour charge
